Hydraulic Residential Drawings

Click images for full view, download full drawings via links below images.



Hoistway Plan

750lb. 36×48

950lb. 36×60

950lb. 40×54

IL-1

Inline openings. Left striking door with the equipment located on the right.

pdf / dwg

pdf / dwg

pdf / dwg

IL-11

Inline openings. Left striking door with the equipment located on the left.

pdf / dwg

pdf / dwg

pdf / dwg

IL-21

Inline openings. Left striking door with the equipment located opposite the opening.

pdf / dwg

pdf / dwg

N/A

IR-1

Inline openings. Right striking door with the equipment located on the left.

pdf / dwg

pdf / dwg

pdf / dwg

IR-11

Inline openings. Right striking door with the equipment located on the right.

pdf / dwg

pdf / dwg

pdf / dwg

IR-21

Inline openings. Right striking door with the equipment located opposite the opening.

pdf / dwg

pdf / dwg

N/A

RL-1

Front & Rear Openings (walk-through). Front opening strikes to the left / rear opening strikes to the right with the equipment located on the right.

pdf / dwg

pdf / dwg

pdf / dwg

RL-10

Front & Rear Openings (walk-through). Front & rear opening strike to the left with the equipment located on the right.

pdf / dwg

pdf / dwg

pdf / dwg

RL-11

Front & Rear Openings (walk-through). Front opening strikes to the left / rear opening strikes to the right with the equipment located on the left.

pdf / dwg

pdf / dwg

pdf / dwg

RL-12

Front & Rear Openings (walk-through). Front & rear openings strike to the right with the equipment located on the left.

pdf / dwg

pdf / dwg

pdf / dwg

RR-1

Front & Rear Openings (walk-through). Front opening strikes to the right / rear opening strikes to the left with the equipment located on the left.

pdf / dwg

pdf / dwg

pdf / dwg

RR-10

Front & Rear Openings (walk-through). Front & rear openings strike to the left with the equipment located on the left.



pdf / dwg

pdf / dwg

pdf / dwg

RR-11

Front & Rear Openings (walk-through). Front opening strikes to the right / rear opening strikes to the left with the equipment located on the right.

pdf / dwg

pdf / dwg

pdf / dwg

RR-12

Front & Rear Openings (walk-through). Front & rear openings strike to the right / rear opening strikes to the right with the equipment located on the right.

pdf / dwg

pdf / dwg

pdf / dwg

SL-1

Front & Side Openings (90-degree). Front & side openings strike to the left with the equipment located on the right.

pdf / dwg

pdf / dwg

N/A

SL-11

Front & Side Openings (90-degree). Front opening strikes to the left / side opening strikes to the right with the equipment located on the right.

pdf / dwg

pdf / dwg

N/A

SL-12

Front & Side Openings (90-degree). Front opening strikes to the right / side opening strikes to the left with the equipment located on the right.

pdf / dwg

pdf / dwg

N/A

SL-13

Front & Side Openings (90-degree). Front & side openings strike to the right with the equipment located on the right.

pdf / dwg

pdf / dwg

N/A

SR-1

Front & Side Openings (90-degree). Front opening strikes to the right / side opening strikes to the right with the equipment located on the left.

pdf / dwg

pdf / dwg

N/A

SR-11

Front & Side Openings (90-degree). Front opening strikes to the right / side opening strikes to the left with the equipment located on the left.

pdf / dwg

pdf / dwg

N/A

SR-12

Front & Side Openings (90-degree). Front opening strikes to the left / side opening strikes to the right with the equipment located on the left.

pdf / dwg

pdf / dwg

N/A

SR-13

Front & Side Openings (90-degree). Front & side openings strike to the left with the equipment located on the left.

pdf / dwg

pdf / dwg

N/A

Other Drawings

2-Stop Elevation

2-stop-hydro-drawing

pdf / dwg

3-Stop Elevation

3-stop-hydro-drawing

pdf / dwg

4-Stop Elevation

4-stop-hyrdro-drawing

pdf / dwg

5-Stop Elevation

5-stop-hyrdo-drawing

pdf / dwg

6-Stop Elevation

6-stop-hyrdo-drawing

pdf / dwg

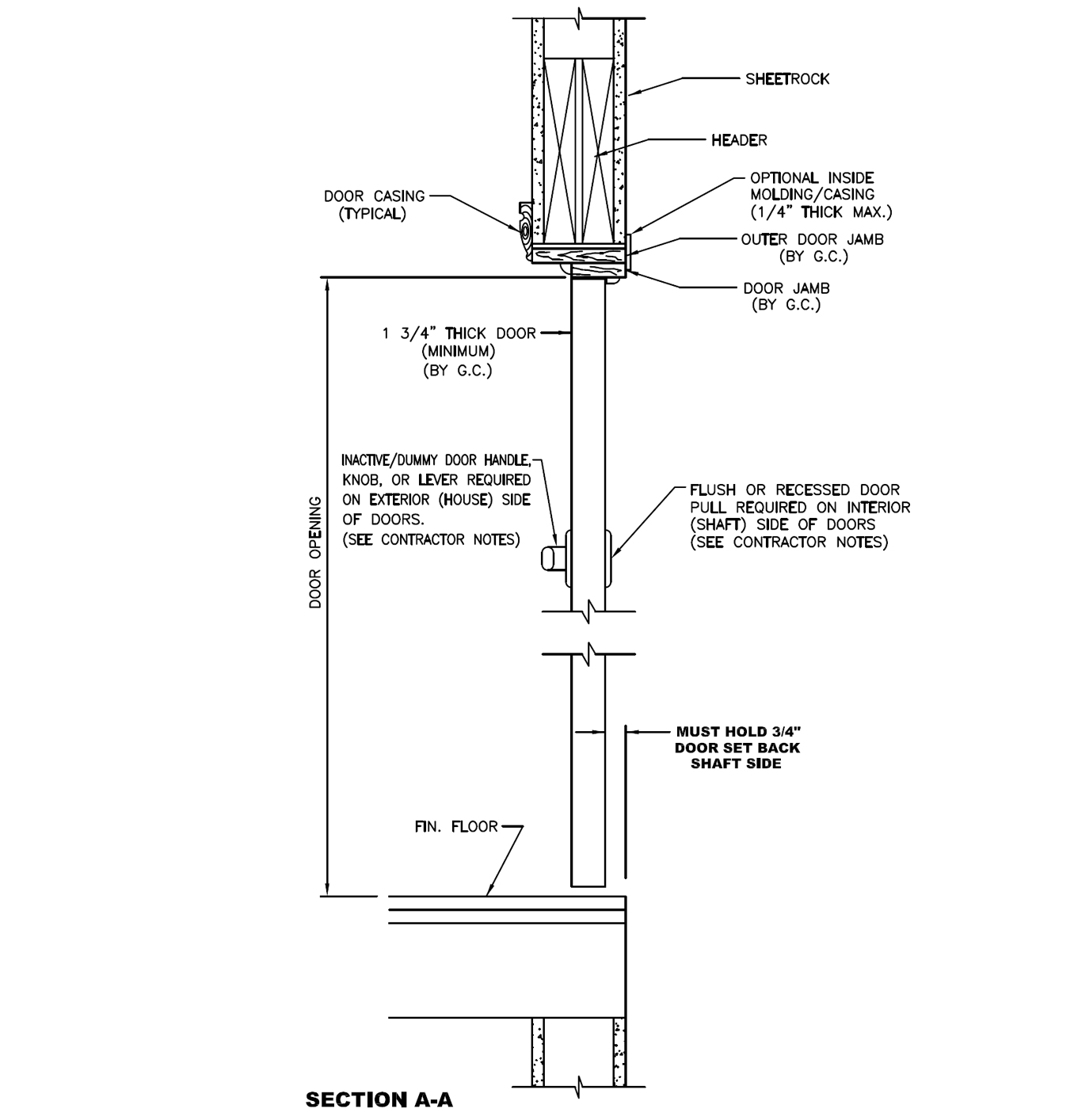

Hoistway Door & Frame

hyrdo-door-frame-drawing

pdf / dwg

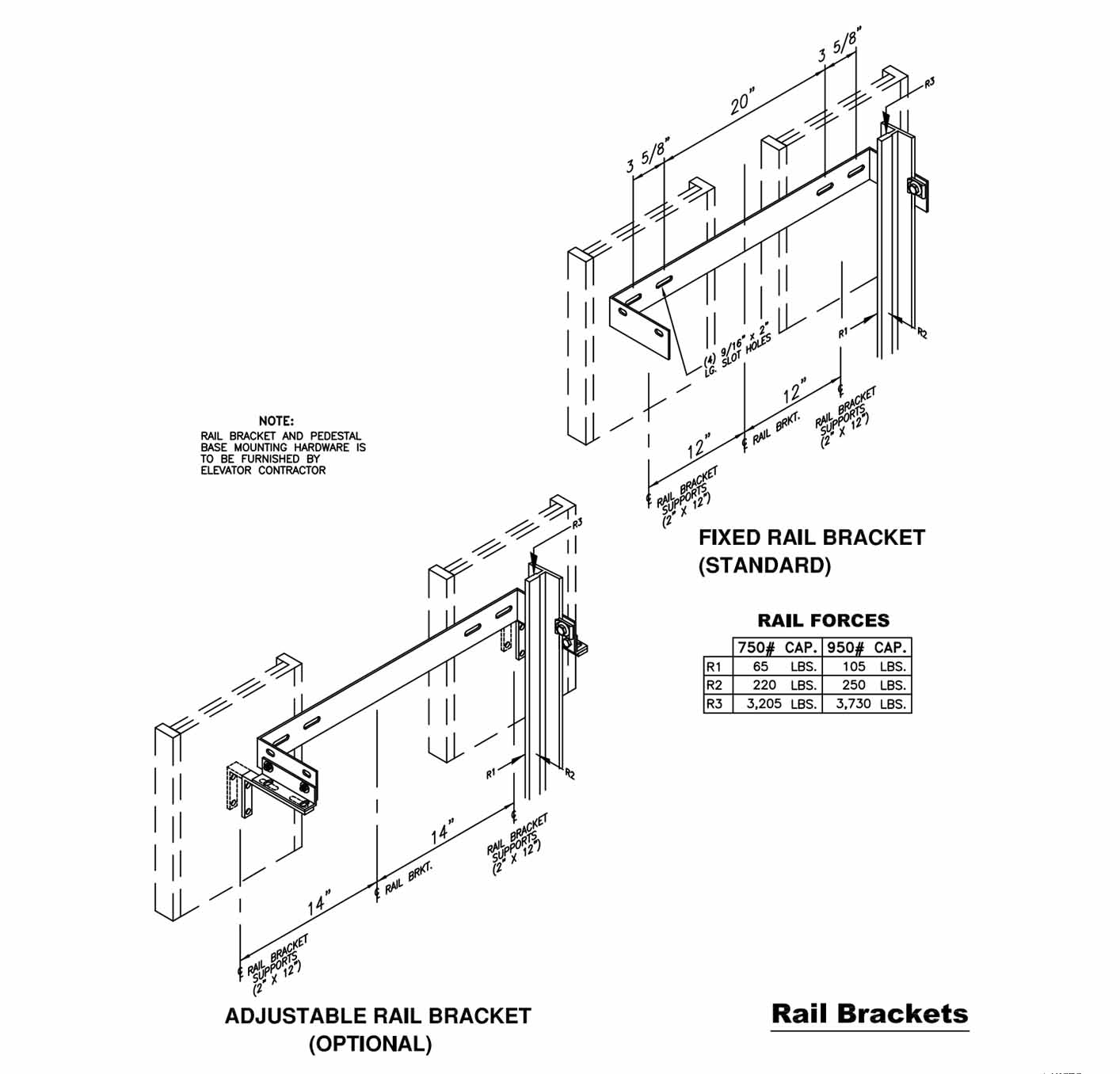

Rail Brackets

rail-brackets drawing

pdf / dwg

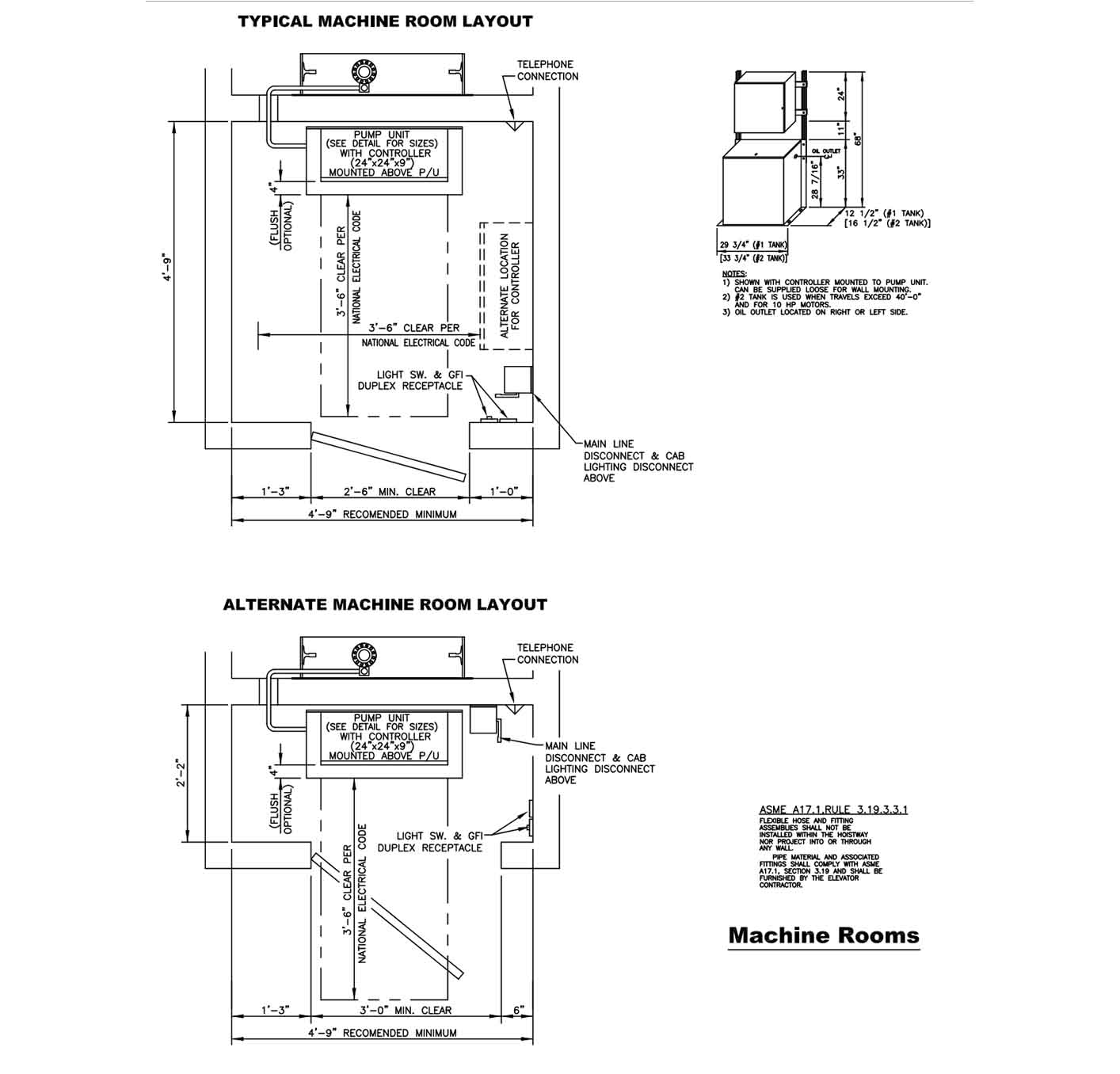

Machine Rooms

hydro-machine-room-drawing

pdf / dwg
